Modular System for Nanostructure Analysis:

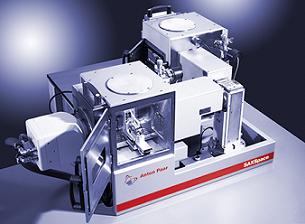

SAXSpace – is a new nanostructure analyzer based on small- and wide-angle X-ray scattering (SWAXS). Nano-sized particles and sample domains scatter X-rays towards small angles; the resulting scattering pattern provides information on the overall size and shape of the nanostructures. SAXSpace provides easy handling and push-button alignment combined with versatile and precise sample stages.
This makes SAXSpace an ideal tool for investigating nanostructures in many different materials, including proteins, foods, pharmaceuticals, polymers, nanoparticles and nanostructured surfaces.

FERTURES

A small genius

·         Easiest operation, including auto-detection of sample stages and push-button alignment

·         Scatterless beam collimation concept for highest resolution and excellent SWAXS data

·         Versatile design and spacious sample chamber to meet all experimental needs

Brilliant features for all your needs

·      TrueFocus – simple and time-saving alignment at the push of a button

·      TrueSWAXS – small- and wide-angle scattering measurements at scattering angles up to 74° 2?

·      SmartSAXS – dual beam concept with multiple beam line option for limitless experimental possibilities and high sample throughput

·         Small footprint – all system components are integrated in one compact platform

Full experimental flexibility

·     StageMaster – precise XYZ stage with auto-detection of sample stages

·     Versatile sample stages and holders for any applications, including Bio-SAXS,
GI-SAXS, SWAXS measurements under controlled tensile stress or humidity

·     High-throughput screening of liquid and solid nanostructured samples

Powerful control and data analysis software

·    SAXSdrive? – full system control for automated SWAXS experiments

·    SAXSquant? – simple and fast data processing using customizable templates

·    Versatile software for advanced SAXS data interpretation

SPECIFICATIONS
